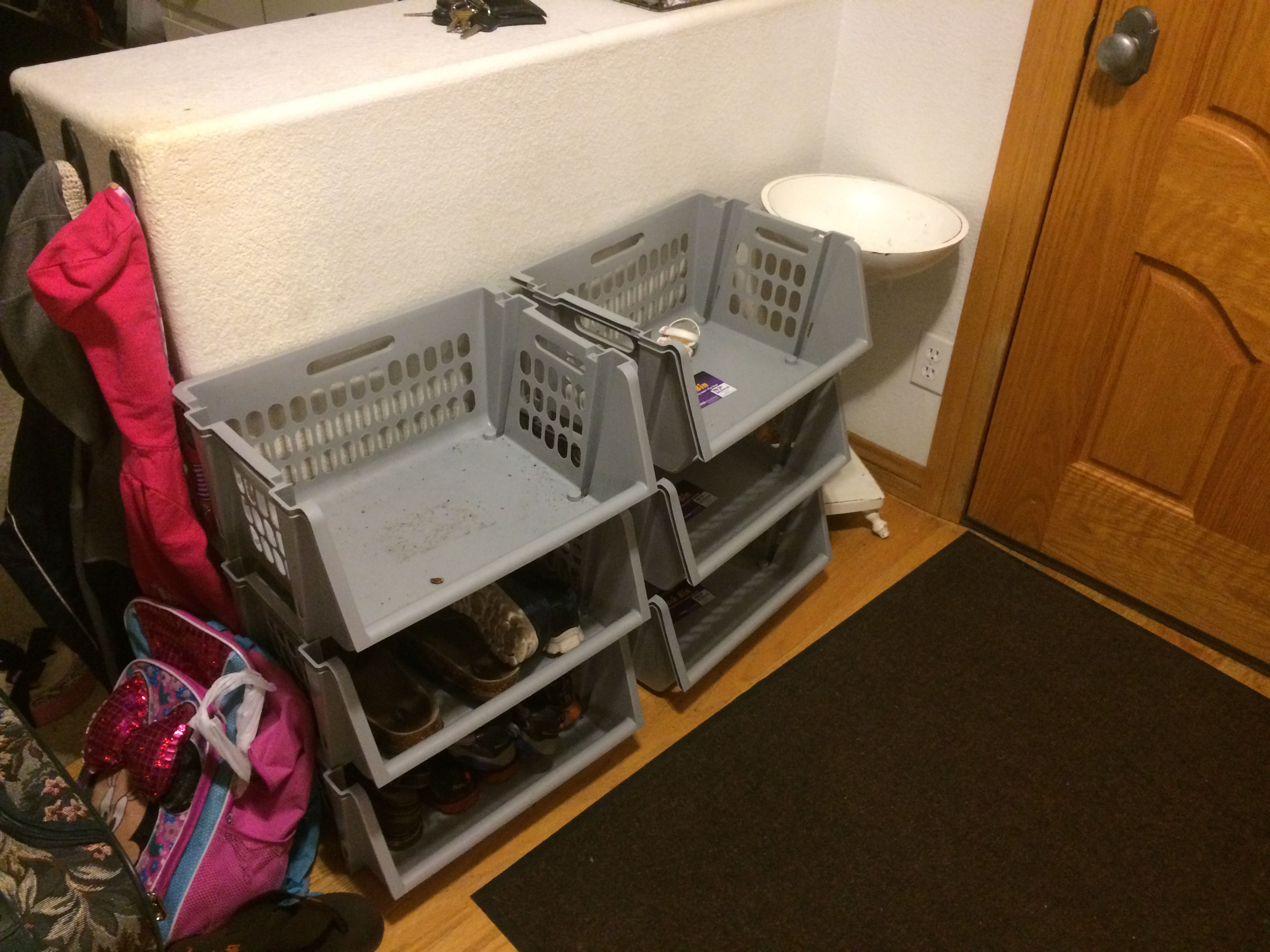

Our front entryway usually looks something like this:
Those are bins to hold shoes; they’re uncharacteristically empty in this picture, but with as many as seven kids in the house at any given time, they’re usually overflowing (and not nice to look at).

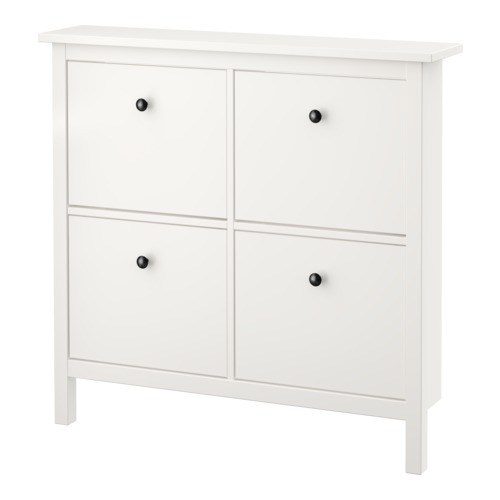

We decided to get a shoe cabinet to keep the shoes (and their smells) hidden. Ikea’s HEMNES shoe cabinet was our top choice:
but it wouldn’t be quite big enough, and it wouldn’t make productive use out of all of the space by the door. I decided instead to build my own custom version of HEMNES.

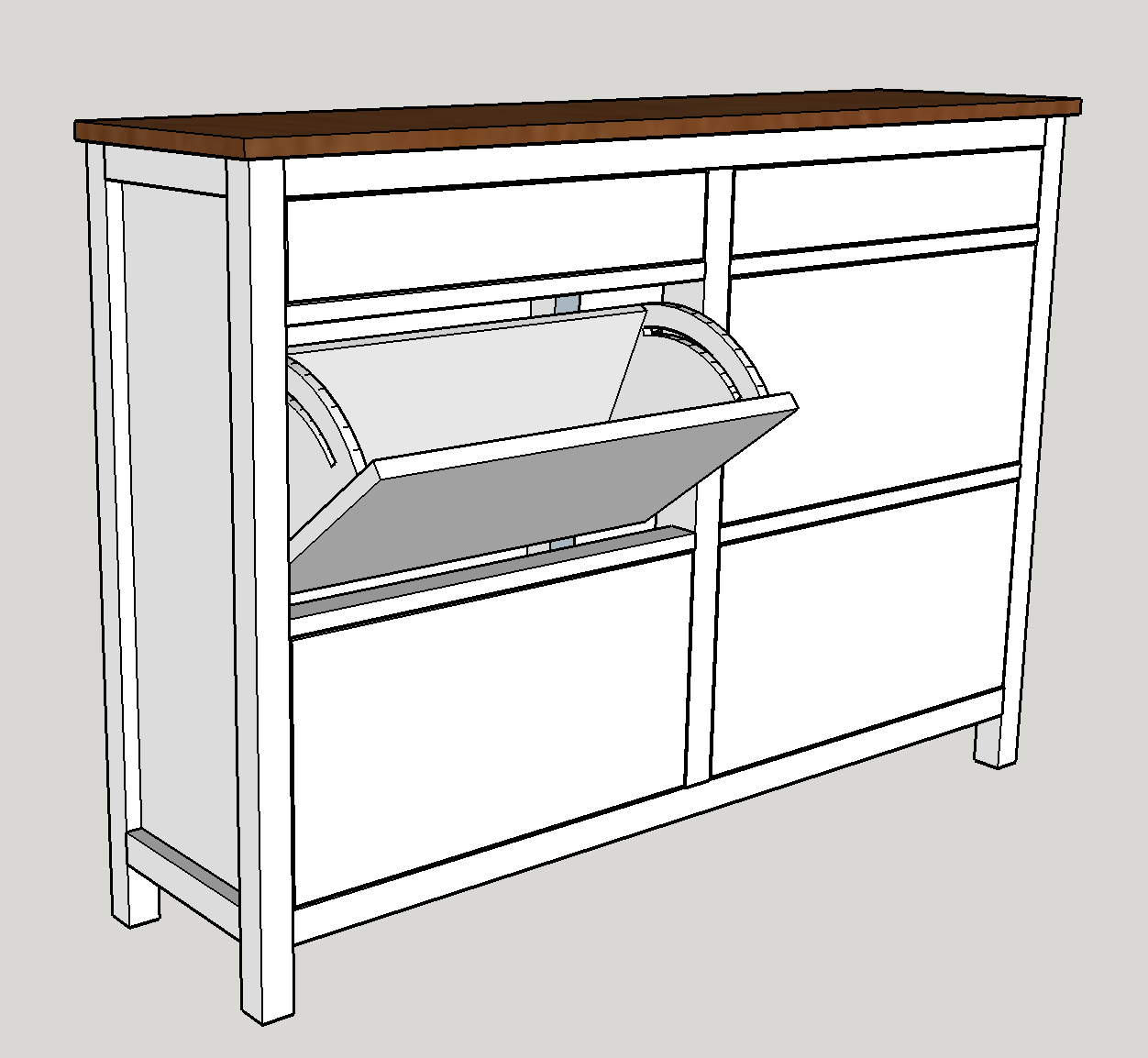

This is a Sketchup model of my plan:
The top two compartments are drawers, and the bottom four are tilt-out cabinets.

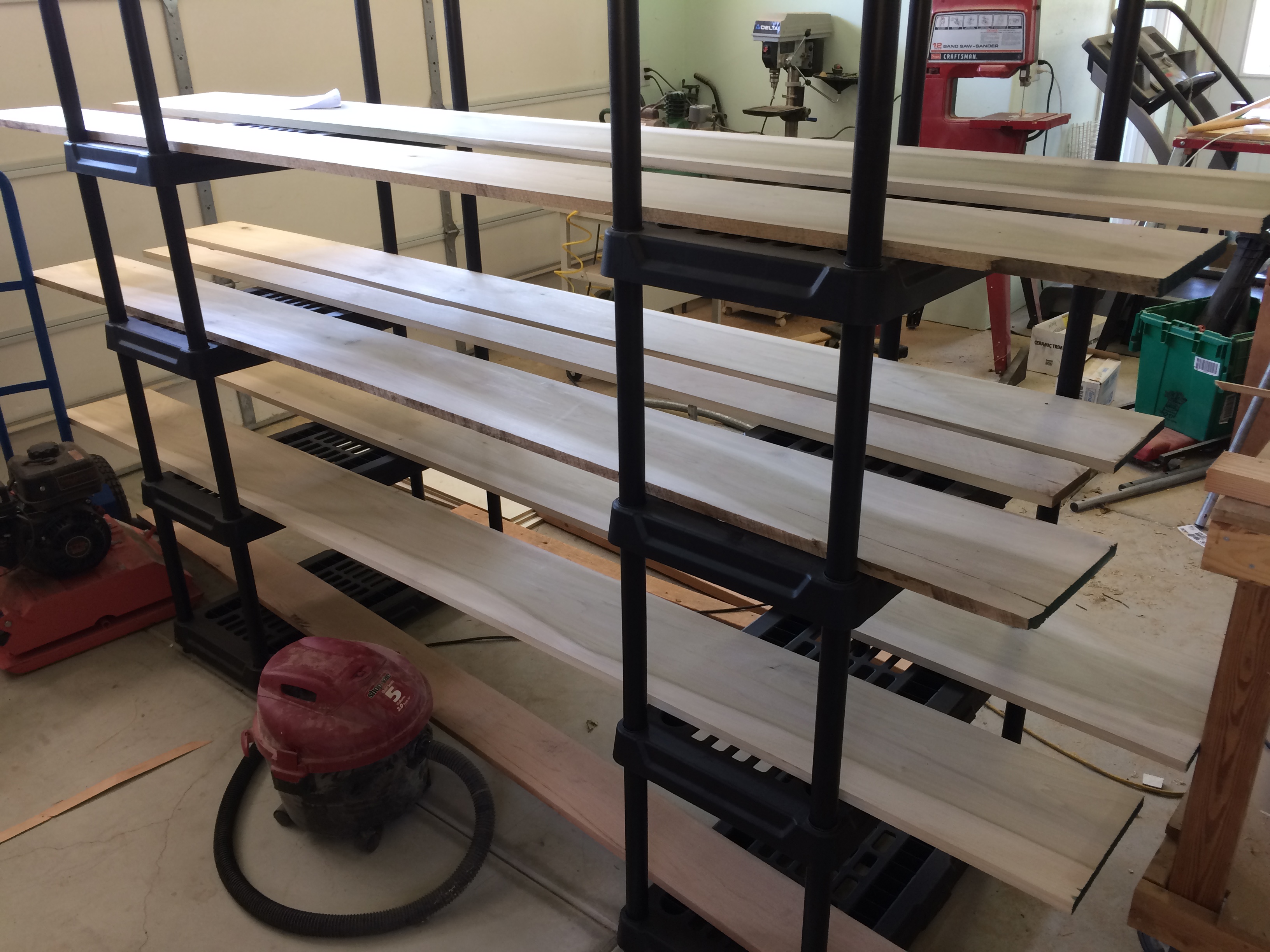

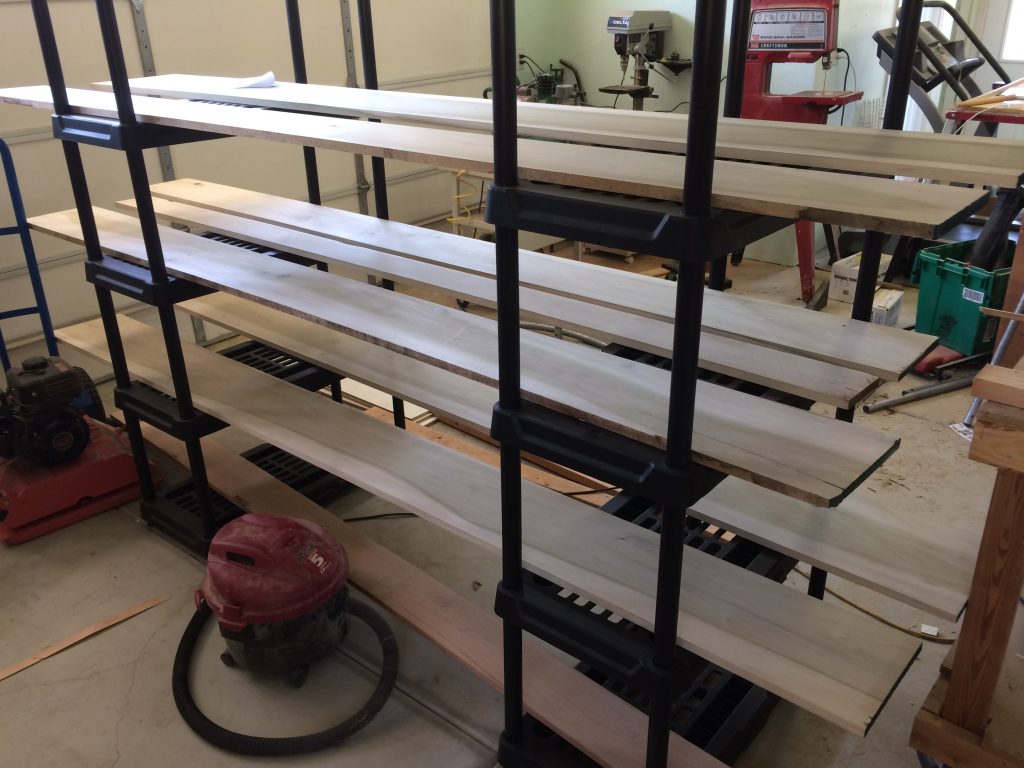

I bought S3S poplar from the local hardwood retailer and some red oak for the top. I chose poplar because the base would be painted, and it has worked well in other similar projects.

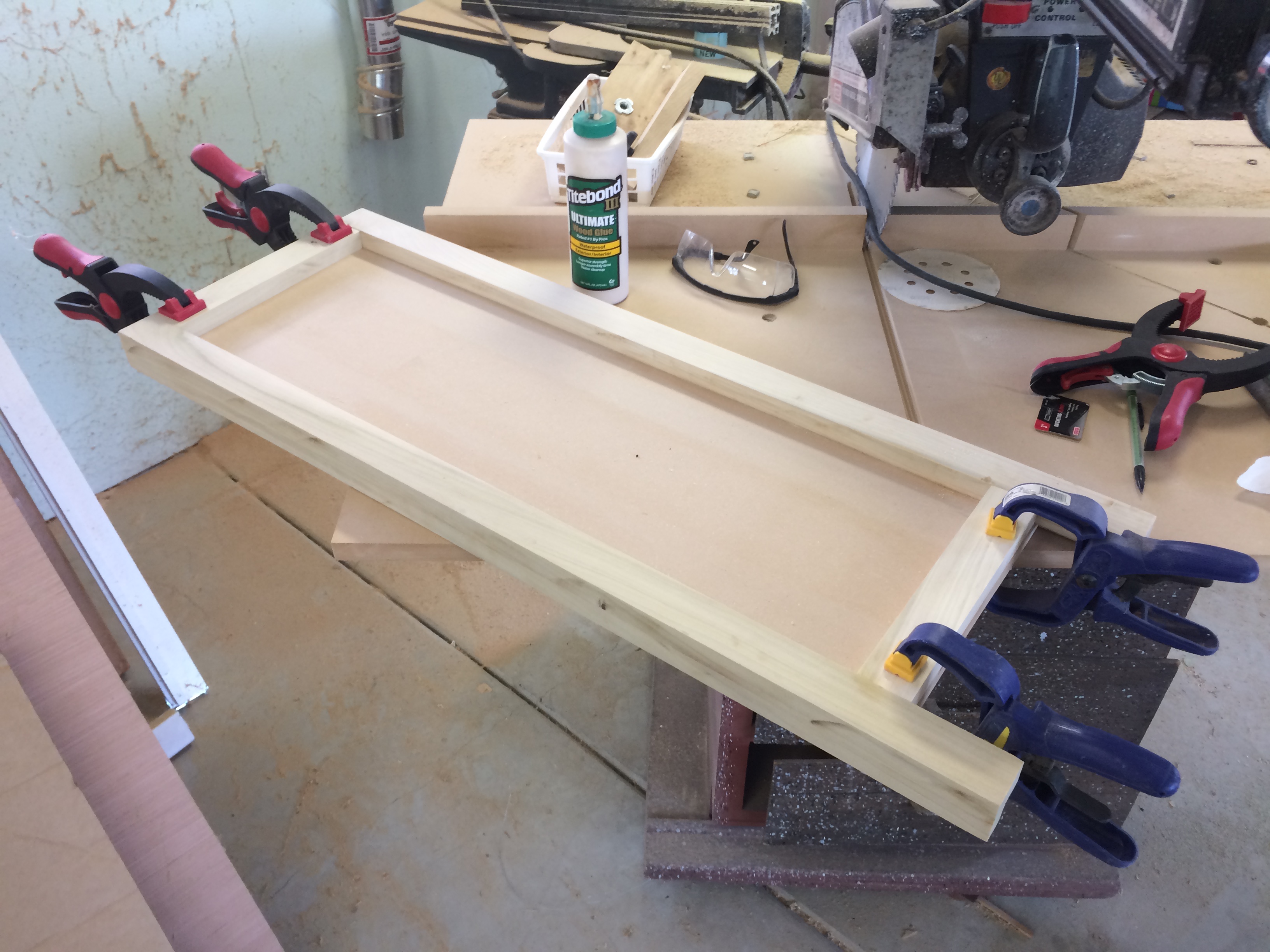

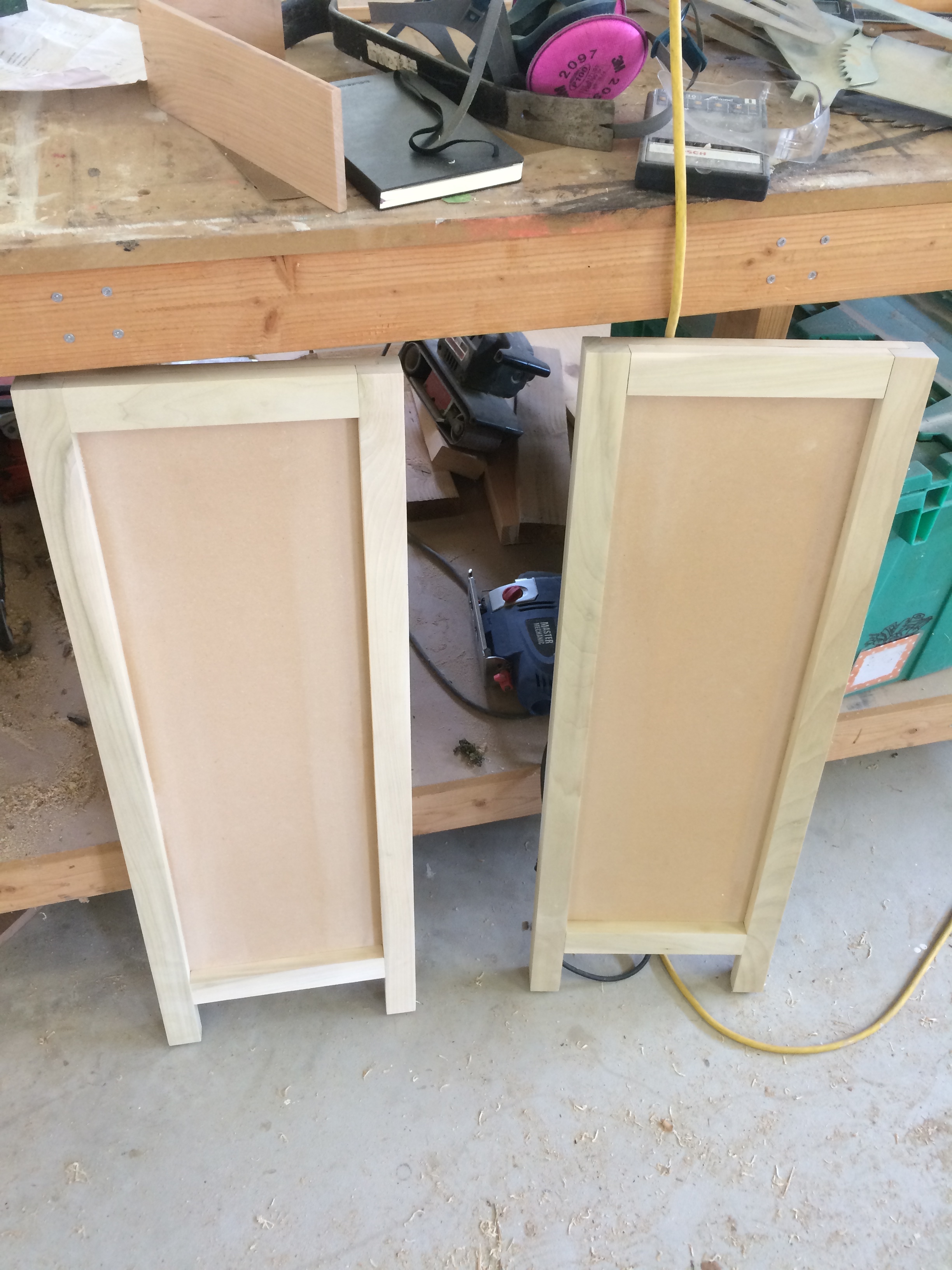

I started by assembling the sides out of MDF and 1×2 strips of poplar. (Any time I needed something thicker than 1x, I laminated two 1x pieces together to avoid having to buy 8/4 stock.)

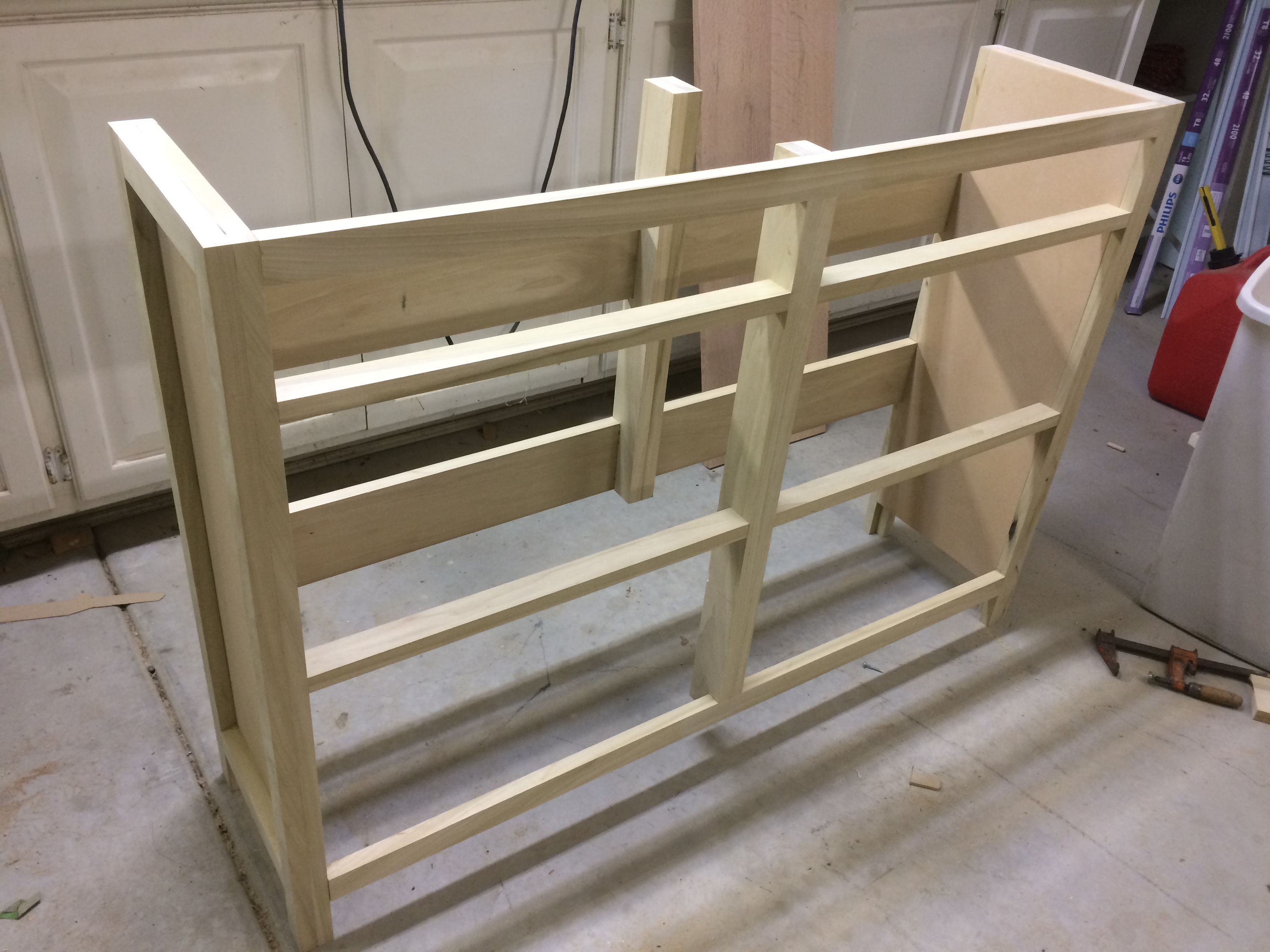

I built a basic box by connecting the sides with some 1x5s on the back and more 1x2s on the front. My original plans only had a single 1×2 running down the center, but I decided to double it up, and I’m glad I did. I used pocket holes to add the dividers between the rest of the drawers and cabinets.

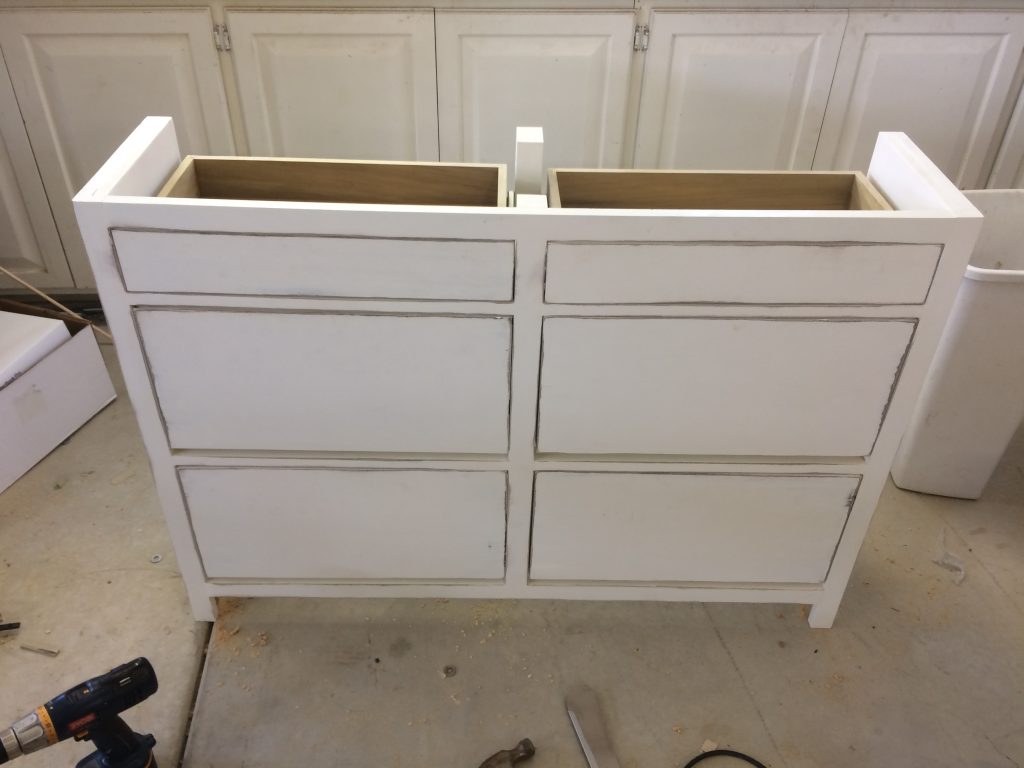

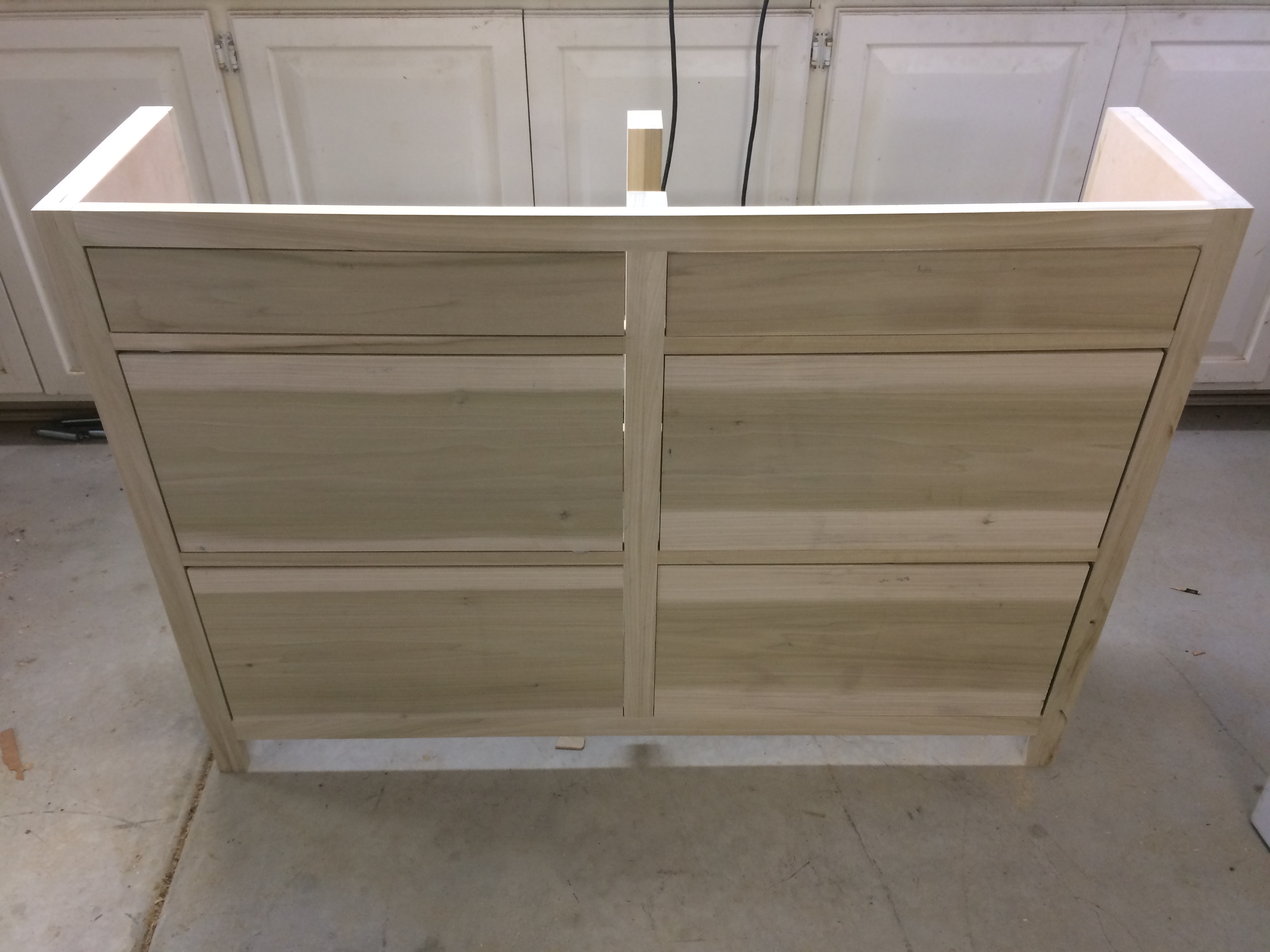

I took my time and cut each cabinet face to fit its opening instead of cutting them all in identical sizes based on the plans like I used to do. Taking this extra time ensured that every face fit perfectly, since nobody’s perfect, and the openings deviated by about 1/8″.

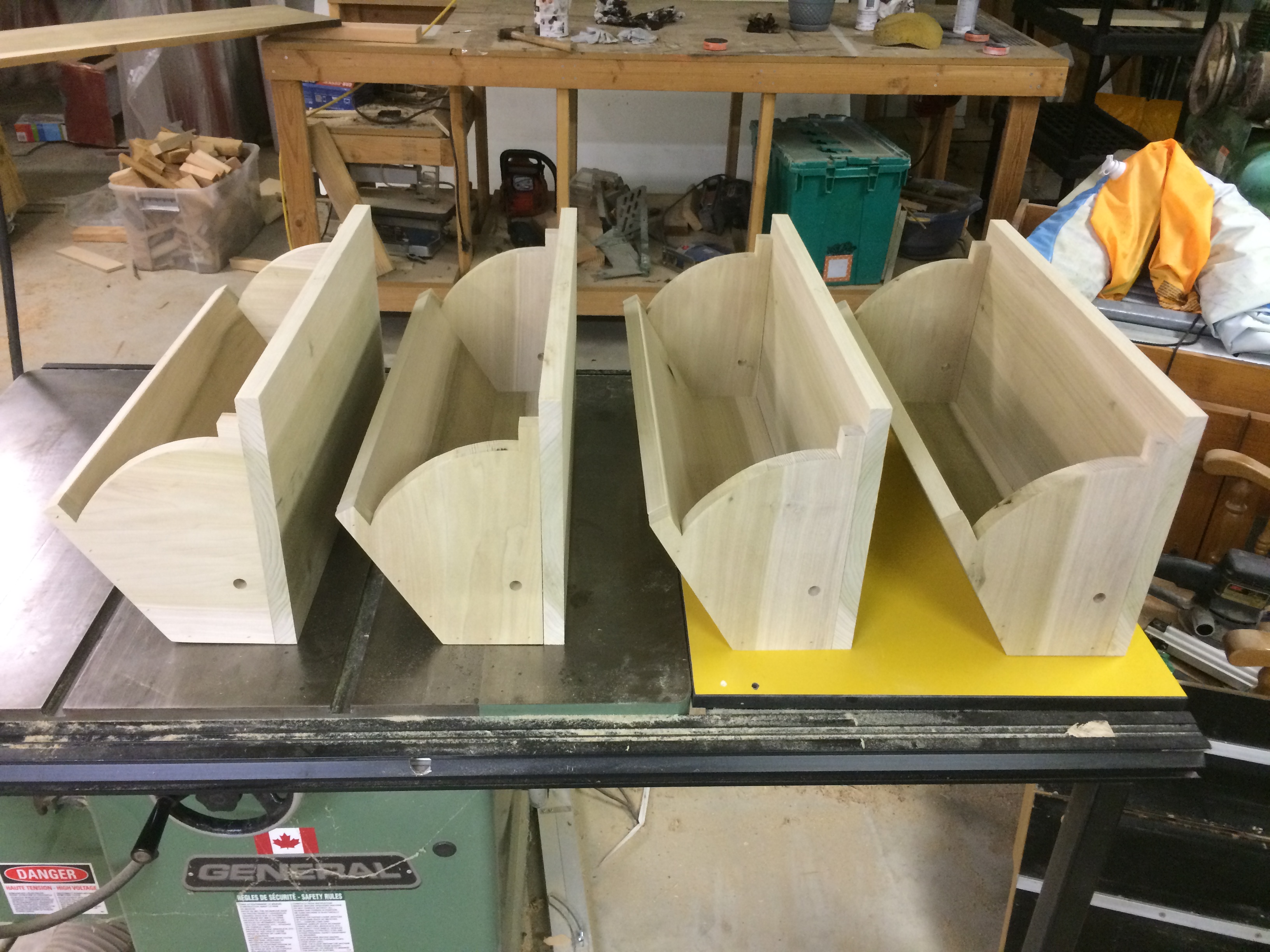

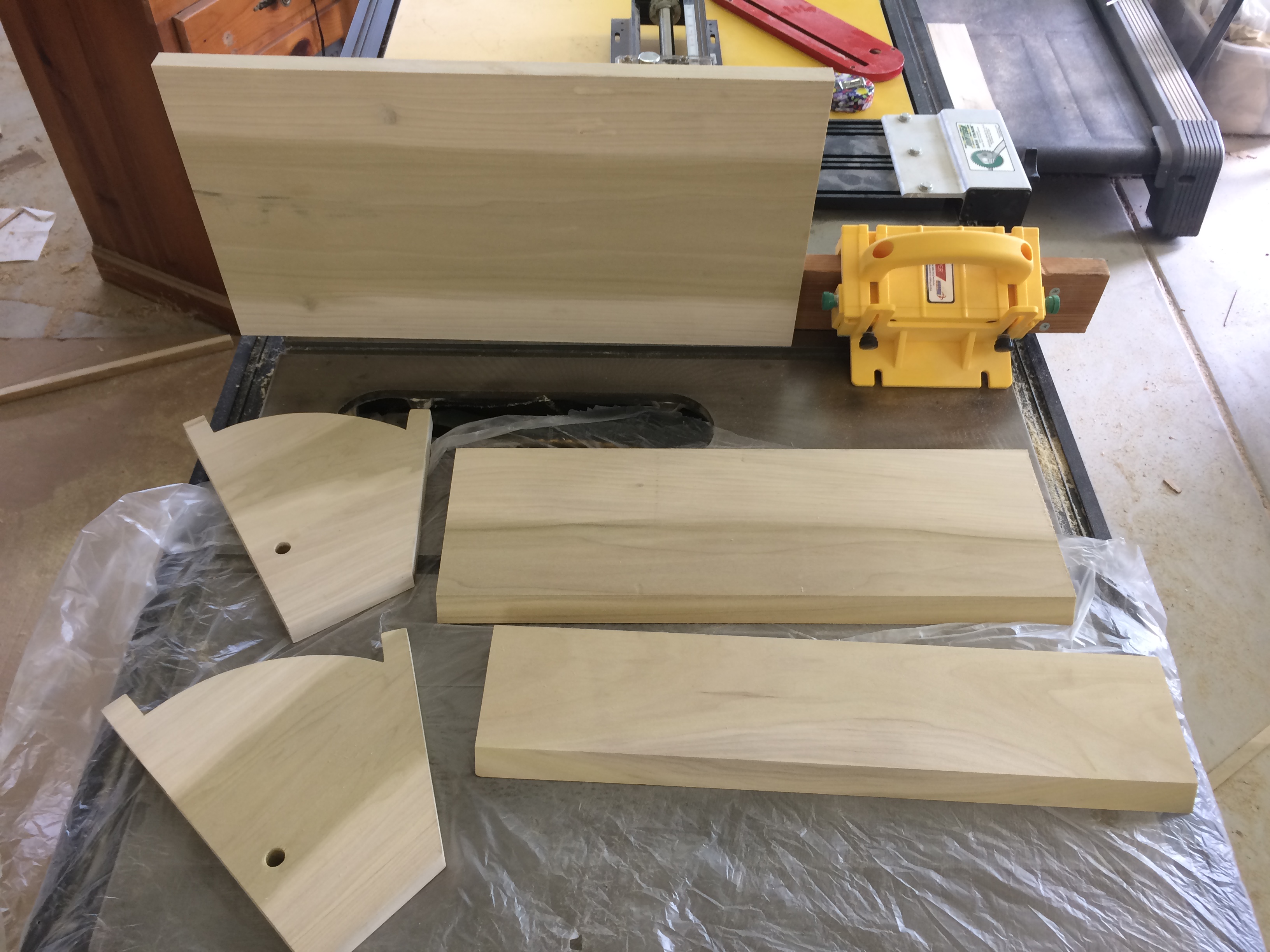

The tilt-out cabinets are composed of five pieces. The side pieces are cut in such a way that a single stop-block will set the closed and open positions, and a dowel on each side will act as the hinge. I initially planned on CNC’ing the sides, but I changed my mind and decided to get some practice on the bandsaw. Looking back, I wish that I had planed these down to at most a half-inch thick; the bins are really bulky.

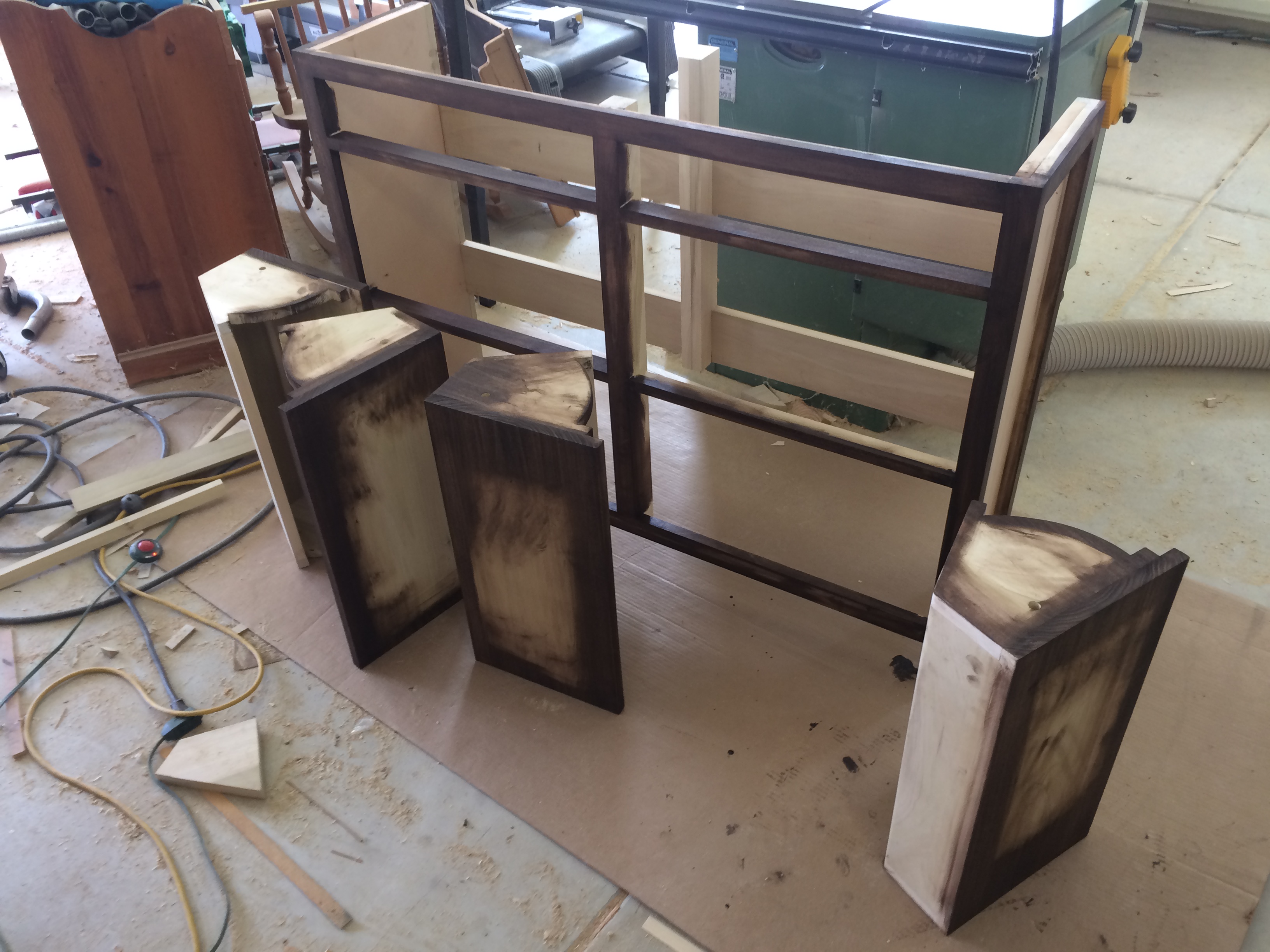

I put some stain on all of the edges and small faces in preparation for painting over them and then weathering the paint to let the stain show through. My wife likes this kind of finish, and that’s fine with me, because it hides (some of) my mistakes.

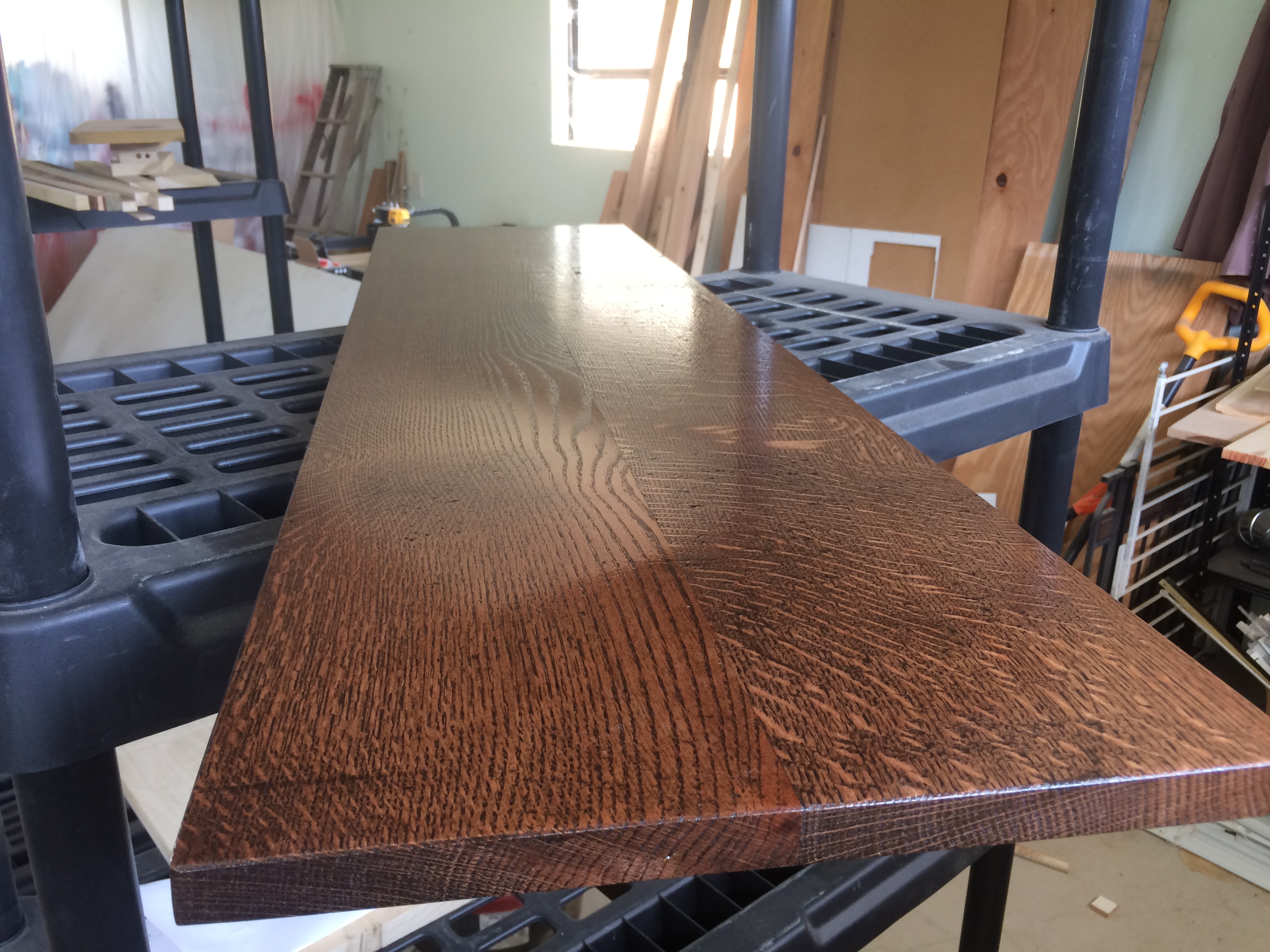

I joined two pieces of red oak and then stained and sealed them for the top. I used Varethane’s Kona stain.

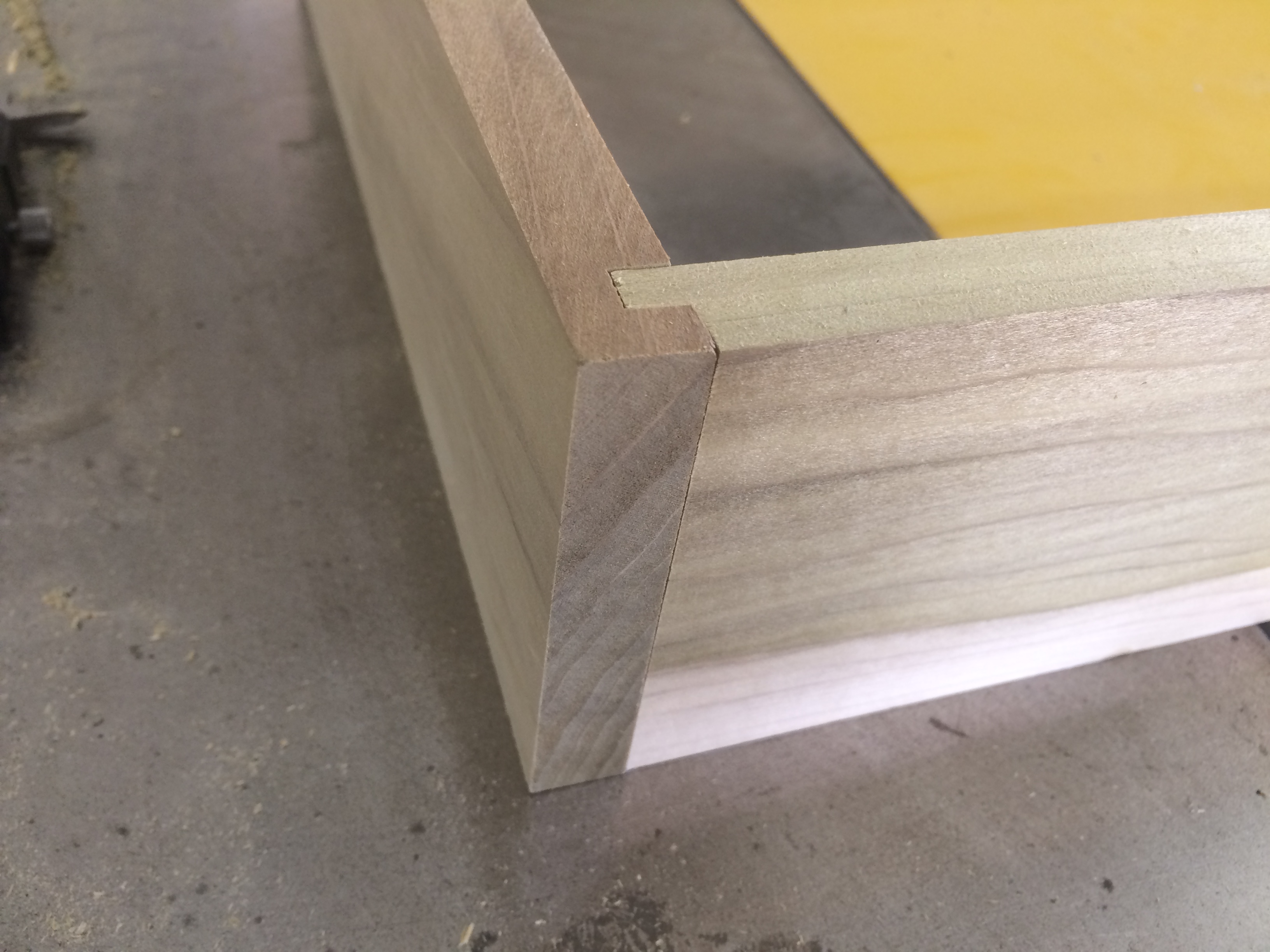

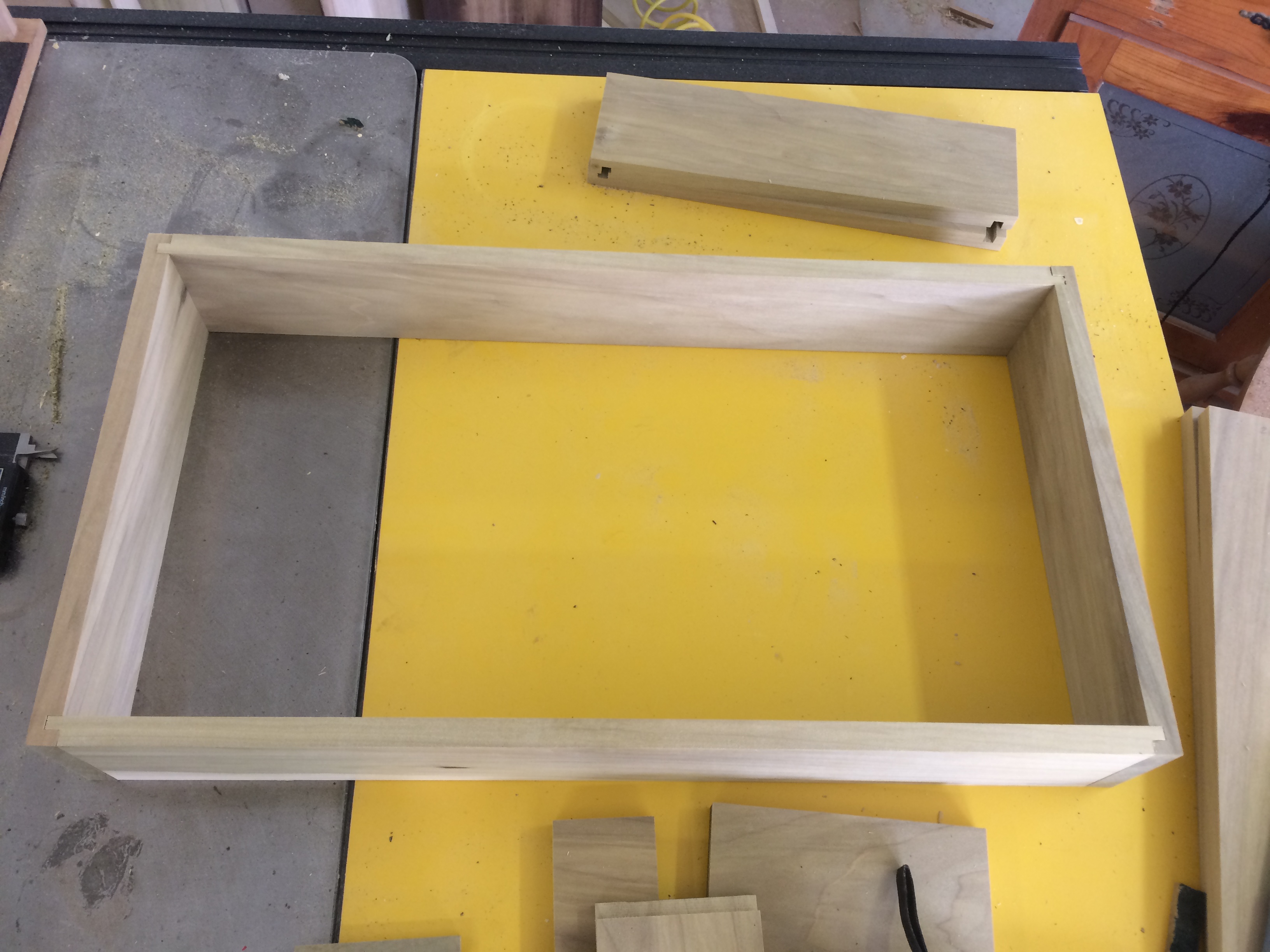

The drawer boxes were constructed with lock rabbets using WOOD Magazine’s drawer method. I was really happy with how this worked out, and I was able to do it all with my regular table saw blade (and some time).

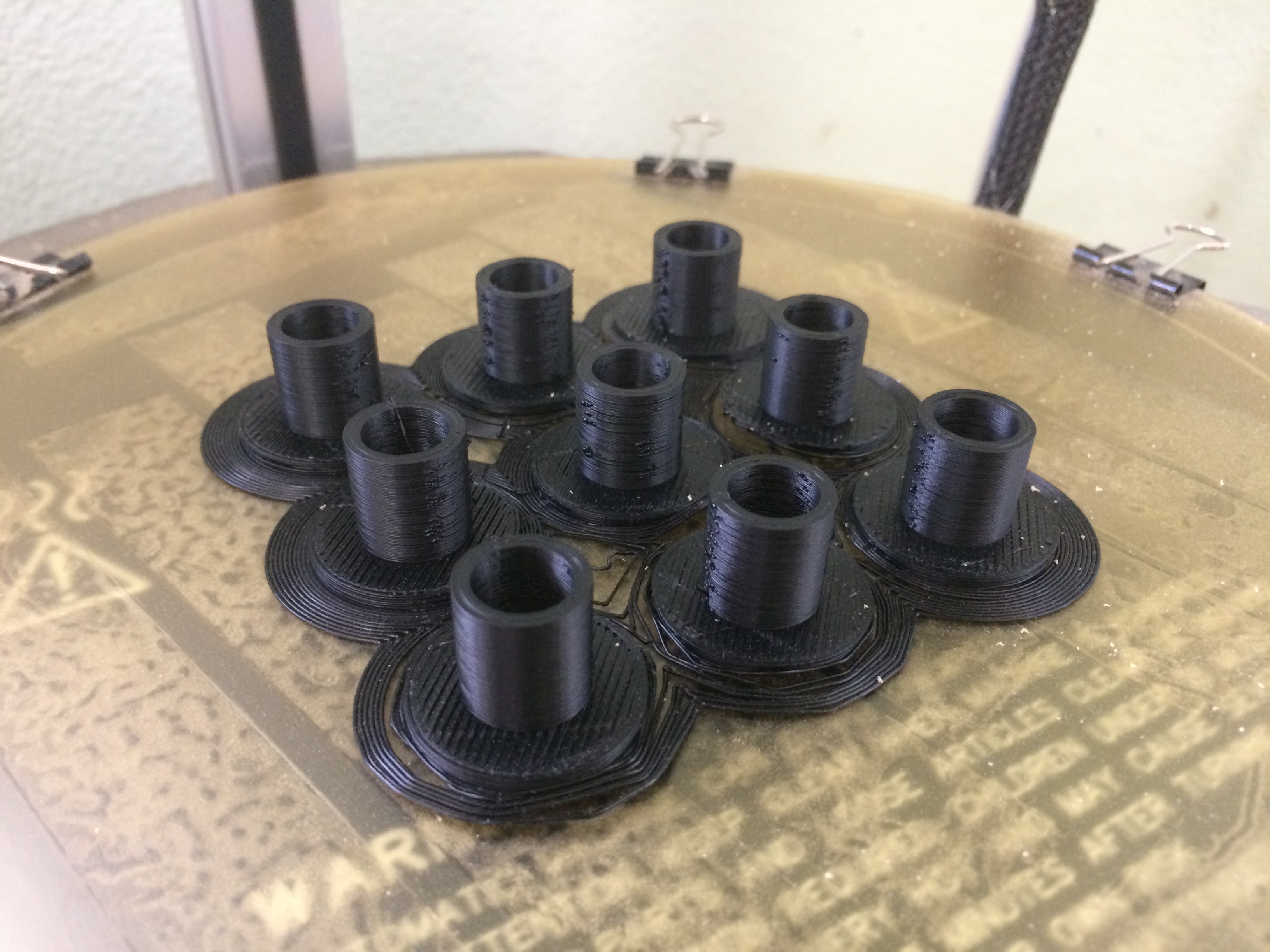

For the cabinet hinges, I printed plastic collars to fit around the dowels so that there wouldn’t be wood rubbing against wood, hopefully reducing wear-and-tear.

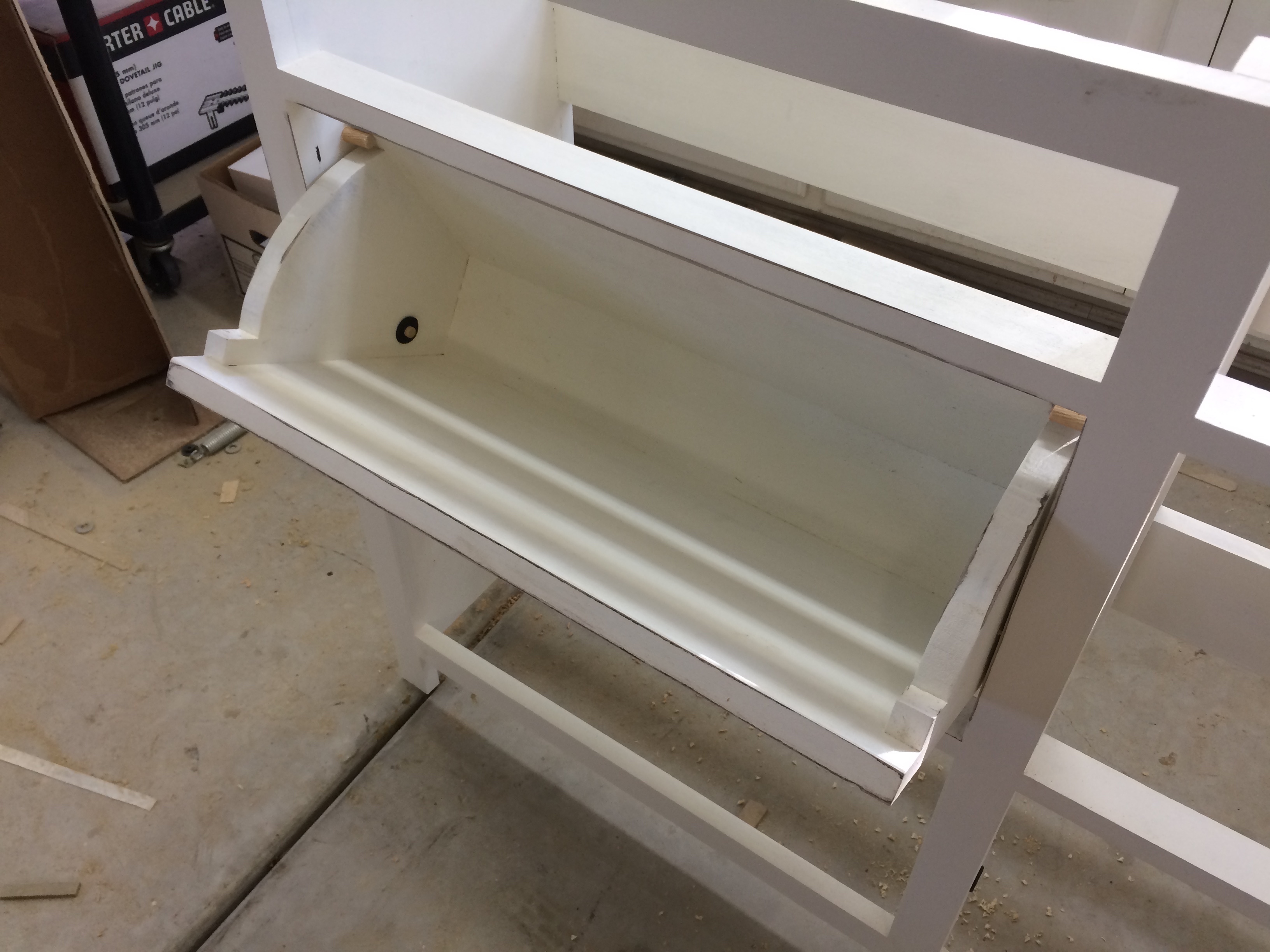

You can see the collars here, as well as the dowels I used as stop-blocks at the top. Those dowels stop the cabinet from closing farther than flush and opening so far that they’d spill their contents.

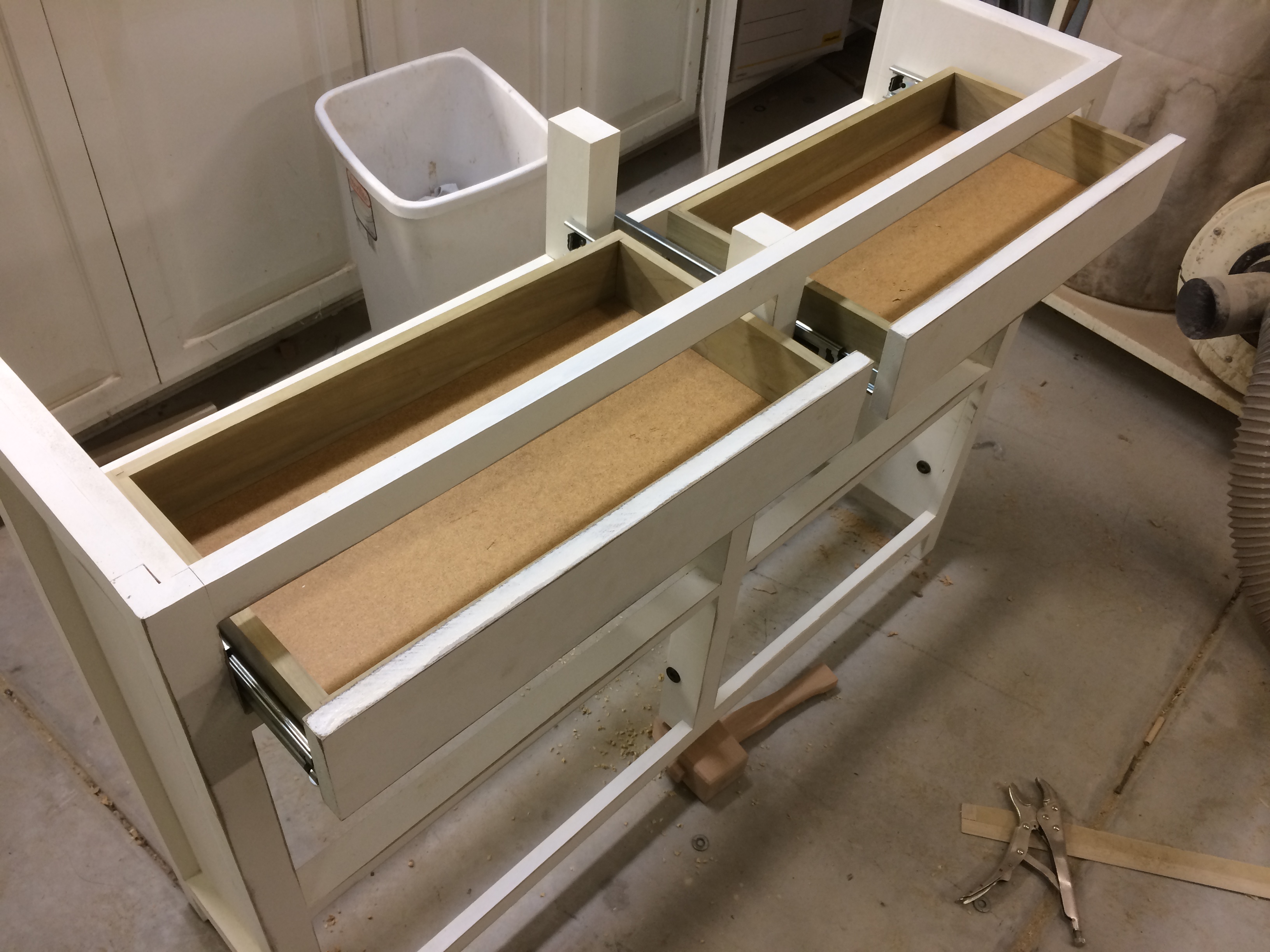

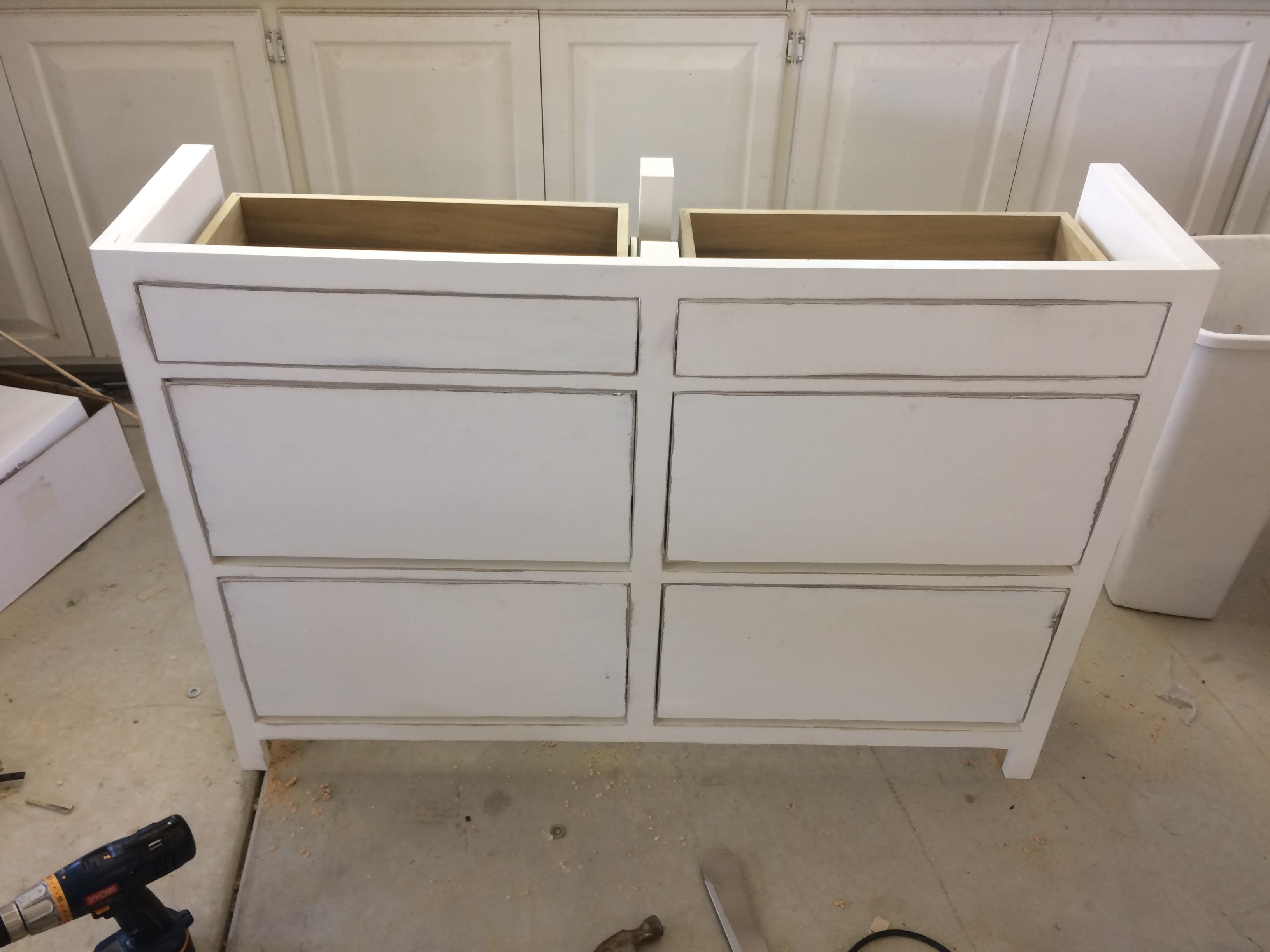

The drawers went in next with full extension slides.

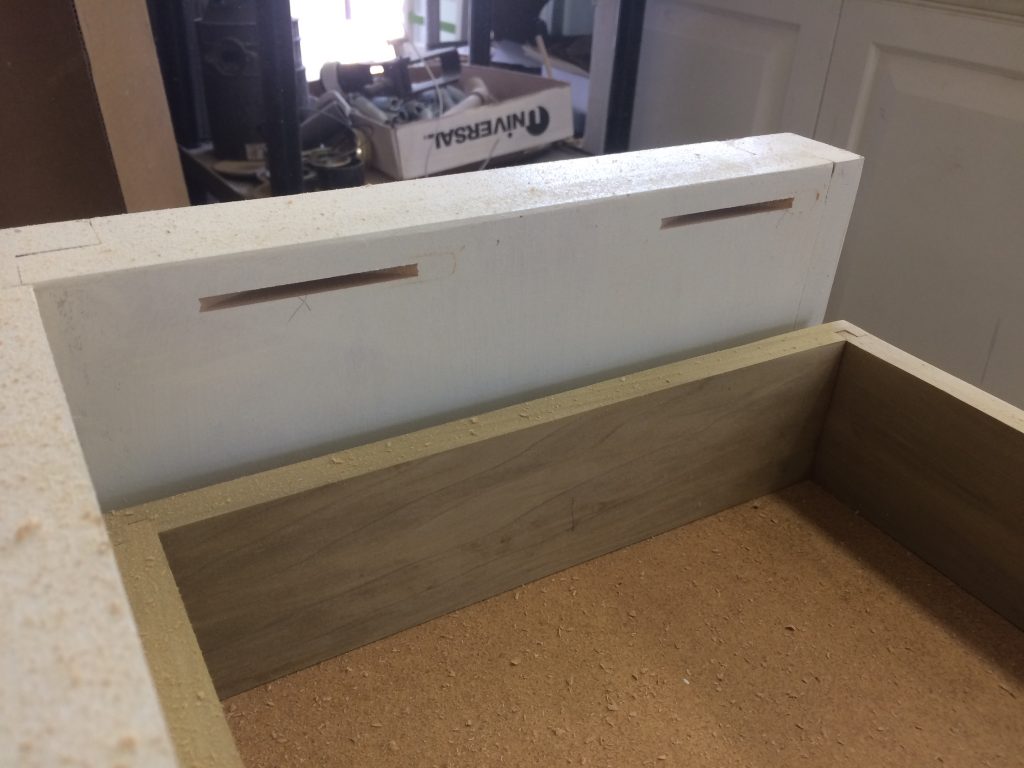

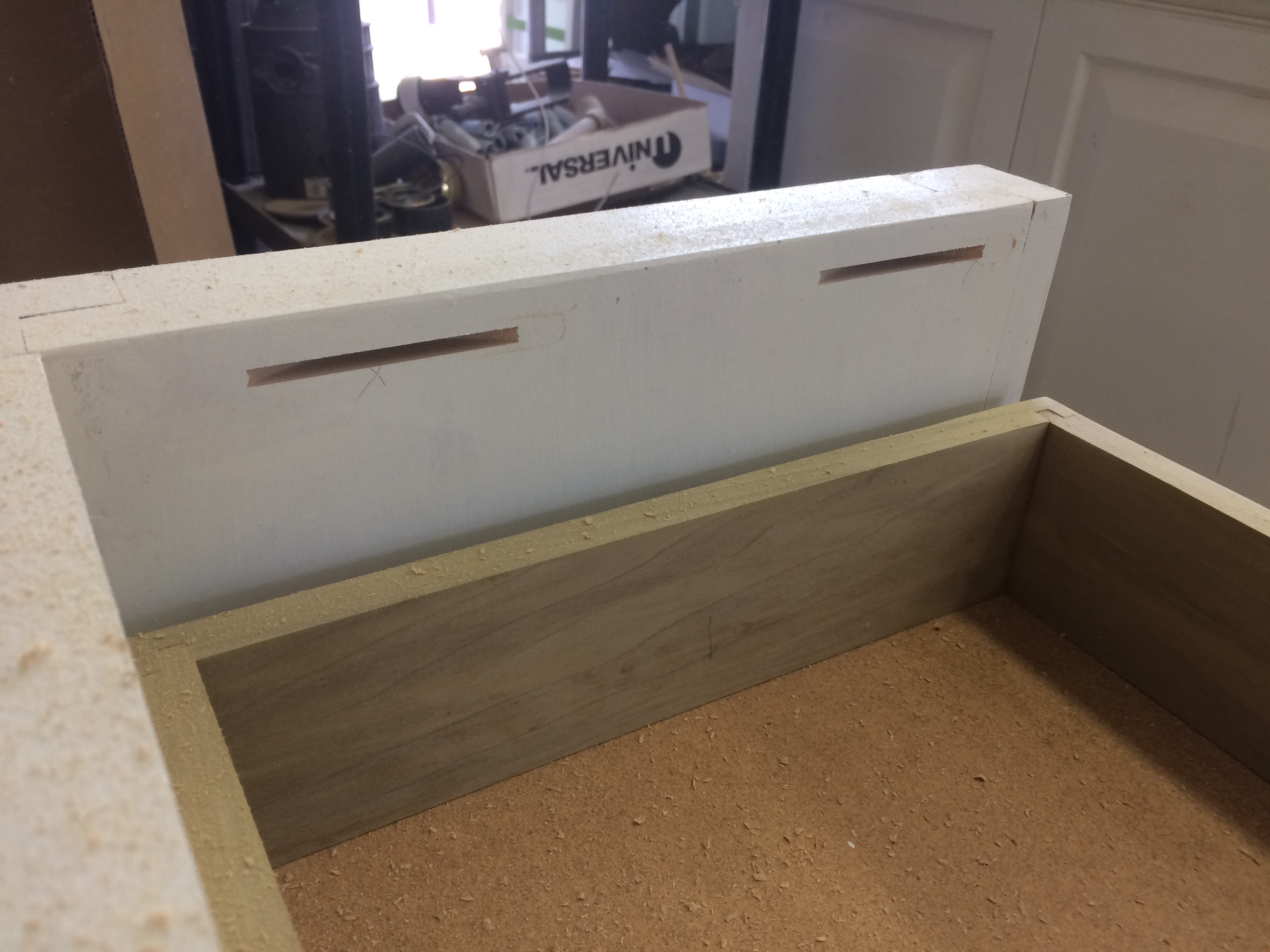

I used a biscuit joiner to cut two slots in each end to receive the tabletop clips that are screwed to the underside of the top. I don’t have a picture of this finished assembly, but it would look the same as this one from when I built our kitchen table.

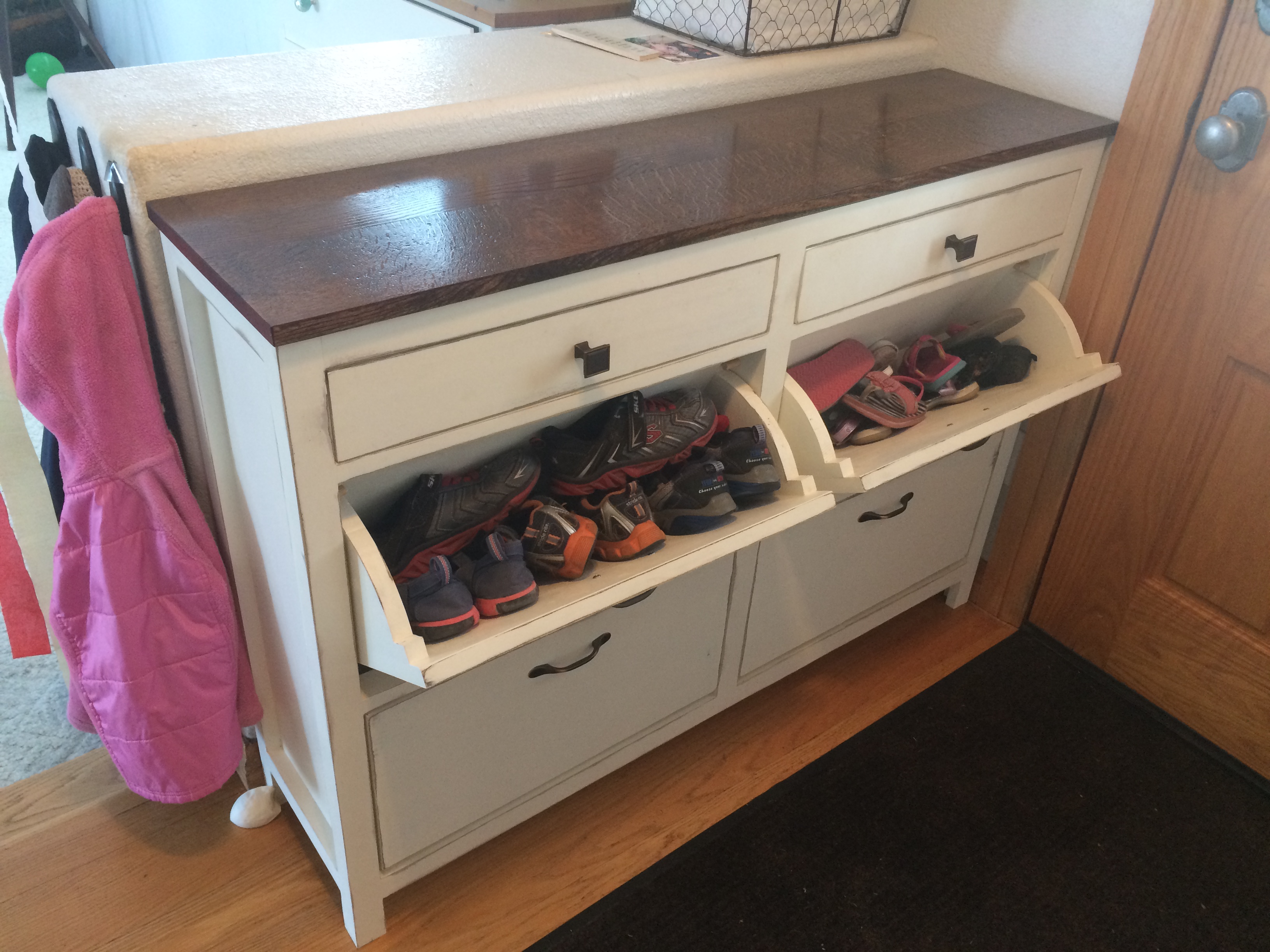

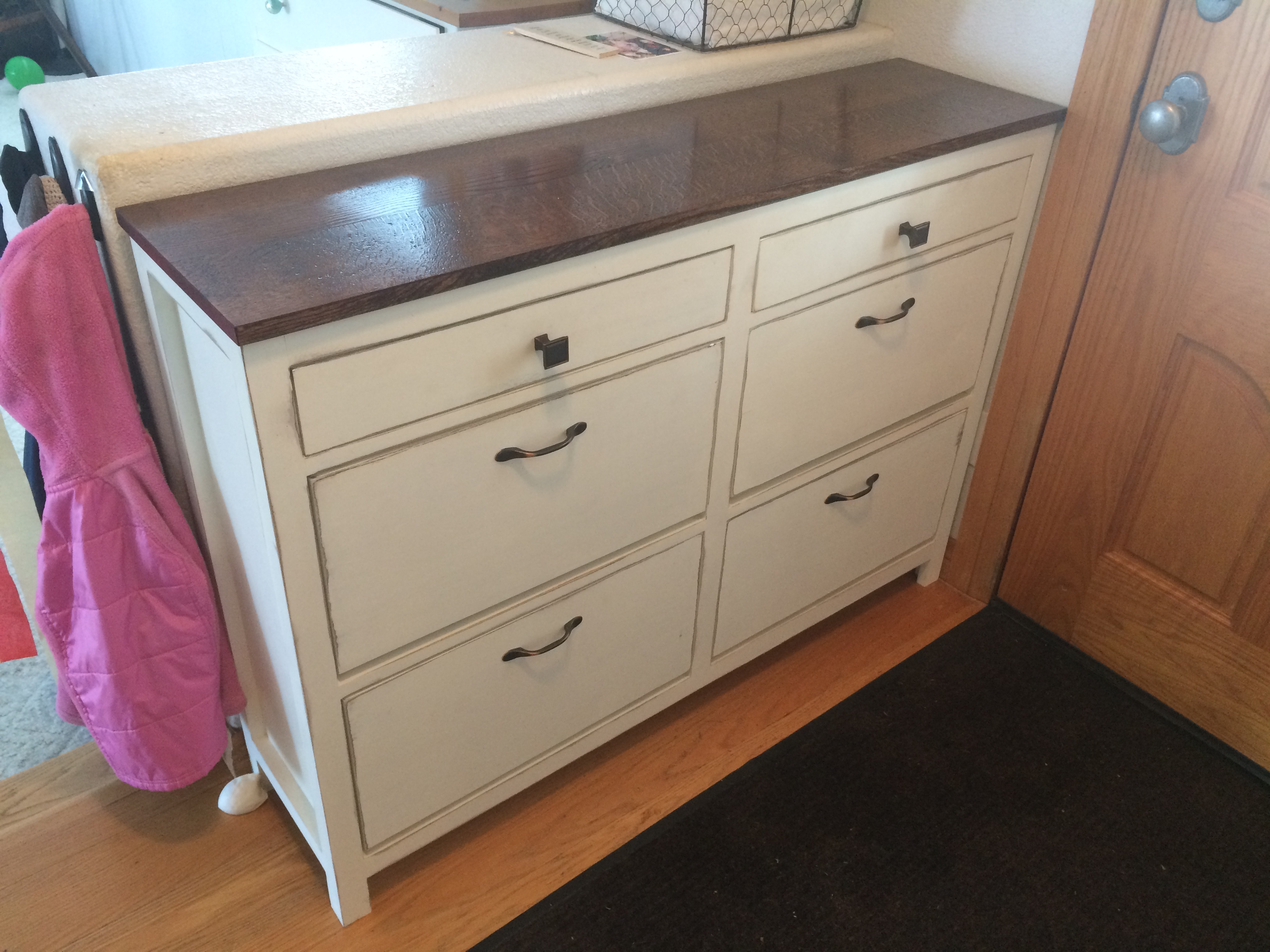

And voila, the final product:
Alternate title for this blog post: Shoe Cabinet, Don’t Bother Me.
Once again, amazing.
That is so cool.
Hi there. Does this work as free standing? Or did you have to bolt it to something? Thanks! Awesome build.
It’s free-standing, but the Ikea version only has front legs, so I think that one would need to be attached to the wall.
well done!!
Apa yang ada ceritakan pada awalnya,sama seperti keadaan dan situasi dirumah saat ini.
Untuk saya sangat berterima kasih dan mengapresiasi kereasi anda.
Mudah mudahan ini semua dapat menjadi jalan keluar pada permasalahan keluarga saya juga.
Sekali lagi,saya ucapkan terima kasih.
Hello Christopher,
Your cabinet is perfect. – This is exactly what we would like to build. The Ikea versions do not have the right dimensions for our space and are not free standing. We are putting this against a wall with a pocket door. So, there would only be a stud on one side to fasten it against the wall. We need it to be free standing.
Would you be able to give us your outer dimensions and maybe also the inside width?
We are planing to buy the tilt out hinges.
Christine,
The base of the cabinet is 48″ wide by 12 1/4″ deep. Each cabinet compartment is 20 1/2″ wide on the inside.
If you’re familiar with SketchUp, you can download the SketchUp file I used as a basis: https://www.chrisfinke.com/files/2017/08/HEMNES.skp I did make a few modifications to this (mainly around how the cubby hinges work), but it has all of the same dimensions.
Awesome project! I am in the similar boat and putting plans together for a shoe cabinet as well. I have some walnut live edge slabs which I want to use for creating the shoe basket front but not sure how tall should I make it. Ideally it should be length of shoe + 0.5 inches, for our family it would be around 12-13inch. I was just checking the sketch up file you shared and see that your front side is 11.125″ tall. Did you face any issues with putting shoes in them?
Yes, as our kids have grown the spacing has gotten pretty cramped, so if you can make them a little taller, that would probably help. Don’t forget to account for the thickness of the bottom of each cabinet when choosing the height of the front.
Hi, will you be able to share your dimension drawing with me, much appreciated
Regards
Willie
I’m working on making proper plans for building this cabinet, so if you don’t mind waiting a week or so, I should have a PDF I can send you.
Hi Chris, if you got round to doing the pdf would you be able to forward please? Great looking project!
Hi there! Wondering if you’d be willing to share the plans with me as well. I’m wanting to build a locker-style cabinet up top with a single layer tilt-out shoe cabinet below.
Sure thing; it got delayed while I built some new chicken nesting boxes, but I’m hoping to get to it soon.
hello, were you able to make the pdf plans for the shoe cabinet? If so, how may I obtain a copy?
thanks,
dale
Sadly, no — I spent a few nights trying to fix some issues with my design and didn’t get anywhere. Life has gotten very busy recently, but if/when I get back to this, I’ll email you a copy of the plans.
